APPLICATION

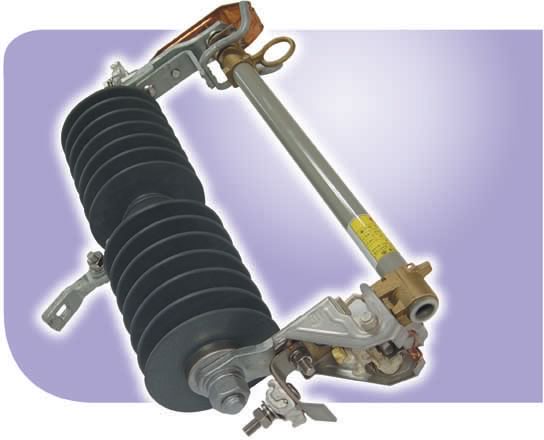

Protection technologies from overcurrents introduced by abnormal condition have been utilized with cutouts. Recently the state-of-the-art technology of the polymer has been integrated into the conventional overcurrent protection device. PYUNGIL cutouts provides dependable overcurrent protection performance for primary distribution systems. Currently two voltage rated cutouts is available, 15kV and 27kV.

PYUNGIL cutouts is electrically and mechanically interchangeable with the other manufacturers' such as S&C, A.B. Chance or ABB cutouts. In addition, Fuse holder interchangeability reduces the time required to replace the fuse during an outage. PYUNGIL cutouts is designed to meet or exceed the requirements of ANSI Standards C37.41-1994 and C37.42-1989, NEMA SG-2-1986 and the other relevant industrial standards.

PYUNGIL cutouts is available in several frame sizes to match the BIL of each distribution system, in a variety of fault current interrupting ratings and optional load break designs. It can be applied to capacitor banks, transformer banks, and for sectionalizing circuits. It is equipped with hooks for use with a portable load break tool, allowing it to be used to break load currents.
